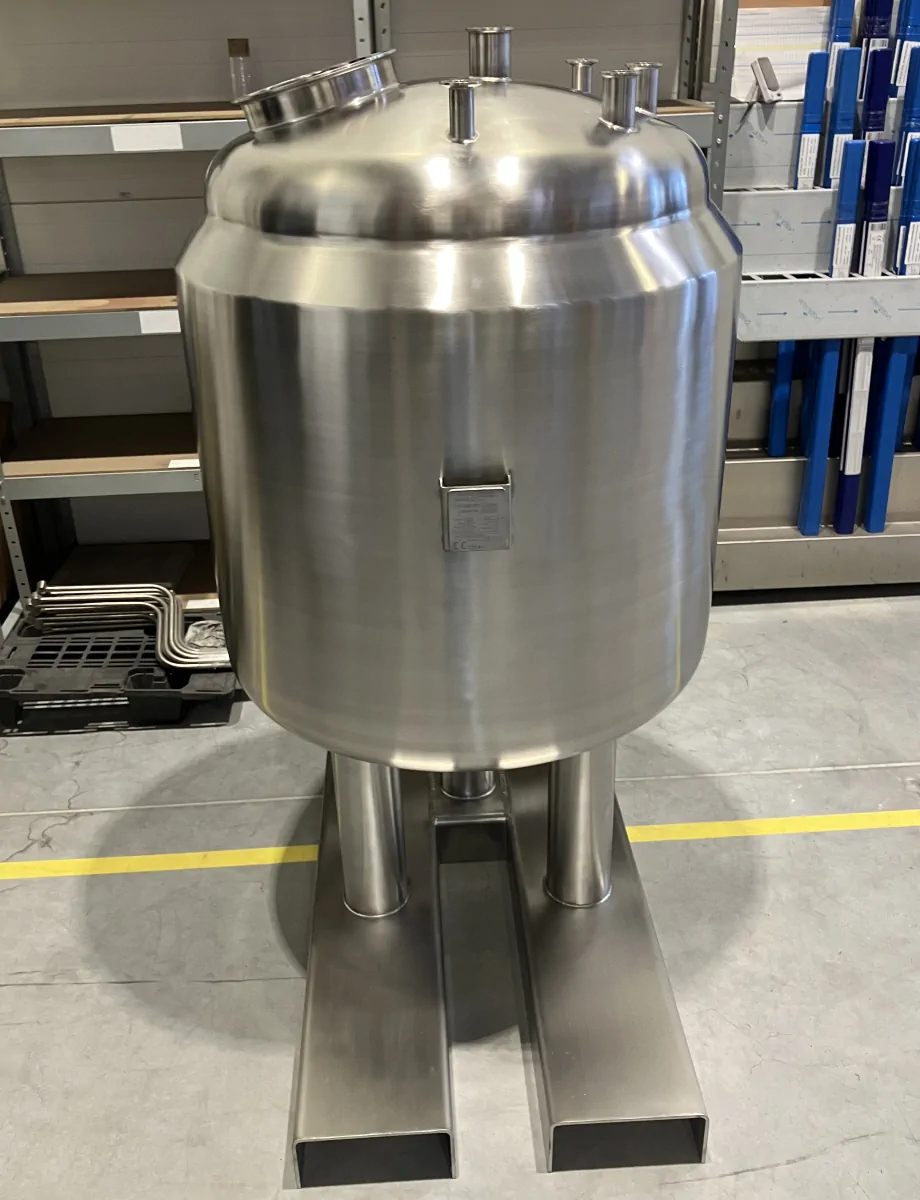

This double-jacketed pressure vessel with a working capacity of 250L (0.25 m³) was custom-built to individual customer specifications – from planning and design to complete implementation. Engineered in accordance with the EN 13445 standard, it operates within a pressure range of -1 to 6 bar (test pressure 9.15 bar) and temperatures from 0 to +150°C.

A key aspect of the project was the use of corrosion-resistant Hastelloy C22 (2.4602) and rigorous surface finishes: product-contact internal surfaces achieved Ra ≤ 0.5 µm (electropolished), external surfaces reached Ra ≤ 1.0 µm, and welds were polished to Grade 2G.

Category

Pressure vessel

Internal surface roughness

Ra ≤ 0.5 µm

Lead Time

240 h

Dimensions

Diameter: 724 mm,
height: 1,350 mm

Założenia projektu

The execution of this double-jacketed pressure vessel with a working capacity of 250L (0.25 m³) was based on a completely individual approach and full custom manufacturing according to the customer’s specifications – from the planning and design stage to final implementation. The main engineering assumption was to design the device in accordance with the rigorous EN 13445 standard, capable of safe operation under vacuum and pressure from -1 to 6 bar (test pressure 9.15 bar) and across a wide temperature range from 0 to +150°C.

The second key objective was the application of high-quality, corrosion-resistant Hastelloy C22 (2.4602) material and achieving uncompromising surface cleanliness. This required precise finishing: product-contact surfaces to a level of Ra ≤ 0.5 µm (with an electropolishing process), external surfaces to Ra ≤ 1.0 µm, and the grinding and polishing of all welds to class 2G, fully meeting strict hygienic and process standards.

Technical specification

  • Device Type: Double-jacketed pressure vessel (a construction manufactured entirely to order and according to the individual specifications of the customer, covering the complete process from planning and design to final implementation)

  • Working capacity: 0.25 m³ (250 l)

  • Operating pressure range: from -1 to 6 bar (adapted for operation under vacuum and overpressure conditions)

  • Test pressure: 9.15 bar (rigorously tested for complete operational safety)

  • Operating temperature range: from 0 to +150°C

  • Design standard: EN 13445 (compliance with European standards for un-fired pressure vessels)

  • Material grade: Hastelloy C22 / 2.4602 (high-grade nickel-chromium-molybdenum alloy with exceptional resistance to chemical corrosion and demanding process environments)

  • Surface finish: Product-contact surfaces: Ra ≤ 0.5 µm (additionally subjected to an electropolishing process to achieve the highest purity and smoothness). External surfaces: Ra ≤ 1.0 µm. Welds: precisely ground and polished to rigorous class 2G
