As part of this project, we manufactured a specialized filter drier engineered to operate in a demanding process environment. Components coming into direct contact with the product were fabricated from Hastelloy C22 / 2.4602, while non-contact structural elements were made of 316L / 1.4404 stainless steel.

A critical milestone of the project involved the final machining of the sealing surfaces. In the most sensitive areas, the required manufacturing tolerance was ±0.1 mm, demanding exceptional precision, technical expertise, and rigorous quality control at every stage of production.

Category

Pharmaceutical chambers

Number of hours worked

2,160 h

Internal surface roughness

Ra 0.5

Dimensions

Diameter 724 mm,
height 1,350 mm

Project assumptions

The main assumption of the project was to manufacture a specialized filter dryer using materials tailored to the process requirements and operating conditions of the equipment. Parts in contact with the product were made of Hastelloy C22 / 2.4602, while elements without direct product contact were built from 316L / 1.4404 stainless steel. Maintaining the required surface quality was also essential — Ra 0.5 inside the device, alongside an external glass-beaded finish.

The second key assumption was extremely high precision in manufacturing, particularly regarding the final mechanical machining of sealing surfaces. In the most critical points, the error tolerance was only ±0.1 mm, which required strict quality control and extensive team experience. The project was executed in accordance with AD 2000-Merkblatt requirements, and its implementation involved a total of 2,160 hours of work by designers, technologists, and welders.

Technical specification

  • Device type: filter dryer manufactured as a specialized process element, designed for operation in demanding industrial environments.

  • Material in contact with the product: Hastelloy C22 / 2.4602, used in zones requiring enhanced material resistance.

  • Material without contact with the product: 316L / 1.4404 stainless steel, utilized in structural elements with no direct contact with the process medium.

  • Device diameter: 724 mm, in accordance with design requirements and structural assumptions.

  • Device height: 1,350 mm, tailored to the function of the filter dryer and installation conditions.

  • Heating jacket: manufactured as a 3-segment assembly, allowing for proper process management in accordance with technological requirements.

  • Insulation jacket: made of material with a thickness of 3 mm, in accordance with project specifications.

  • Internal surface roughness: Ra 0.5, which was one of the essential quality requirements of the implementation.

  • External surface finish: the surface was glass-beaded, resulting in a uniform and aesthetic external finish.

  • Sealing surface tolerance: in the most critical points, the required manufacturing accuracy was ±0.1 mm.

  • Execution standard: project executed in accordance with AD 2000-Merkblatt requirements.

  • Total hours worked: the implementation required a total of 2,160 hours of work by the team of designers, technologists, and welders.

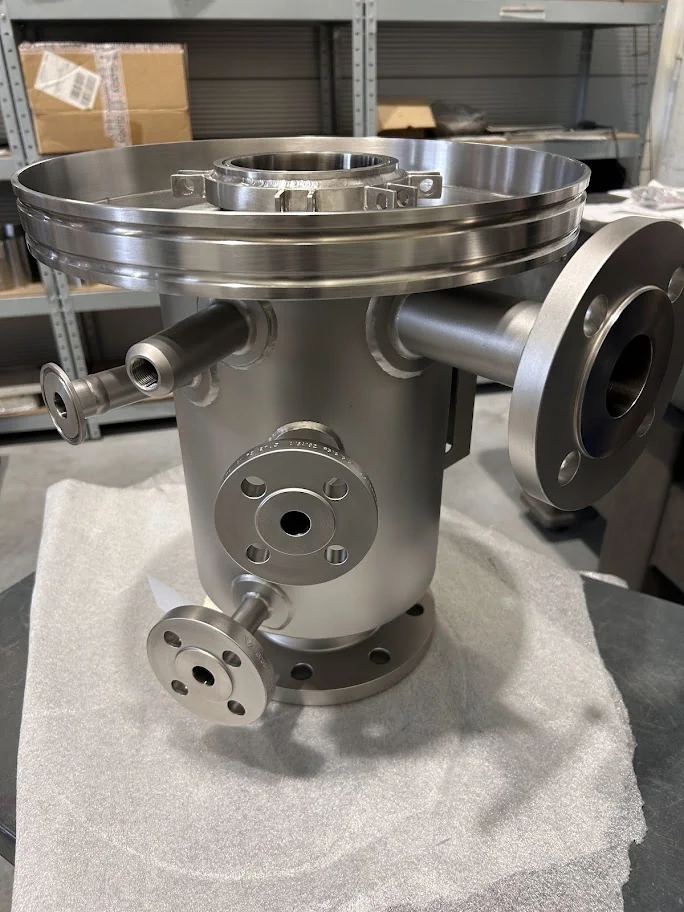

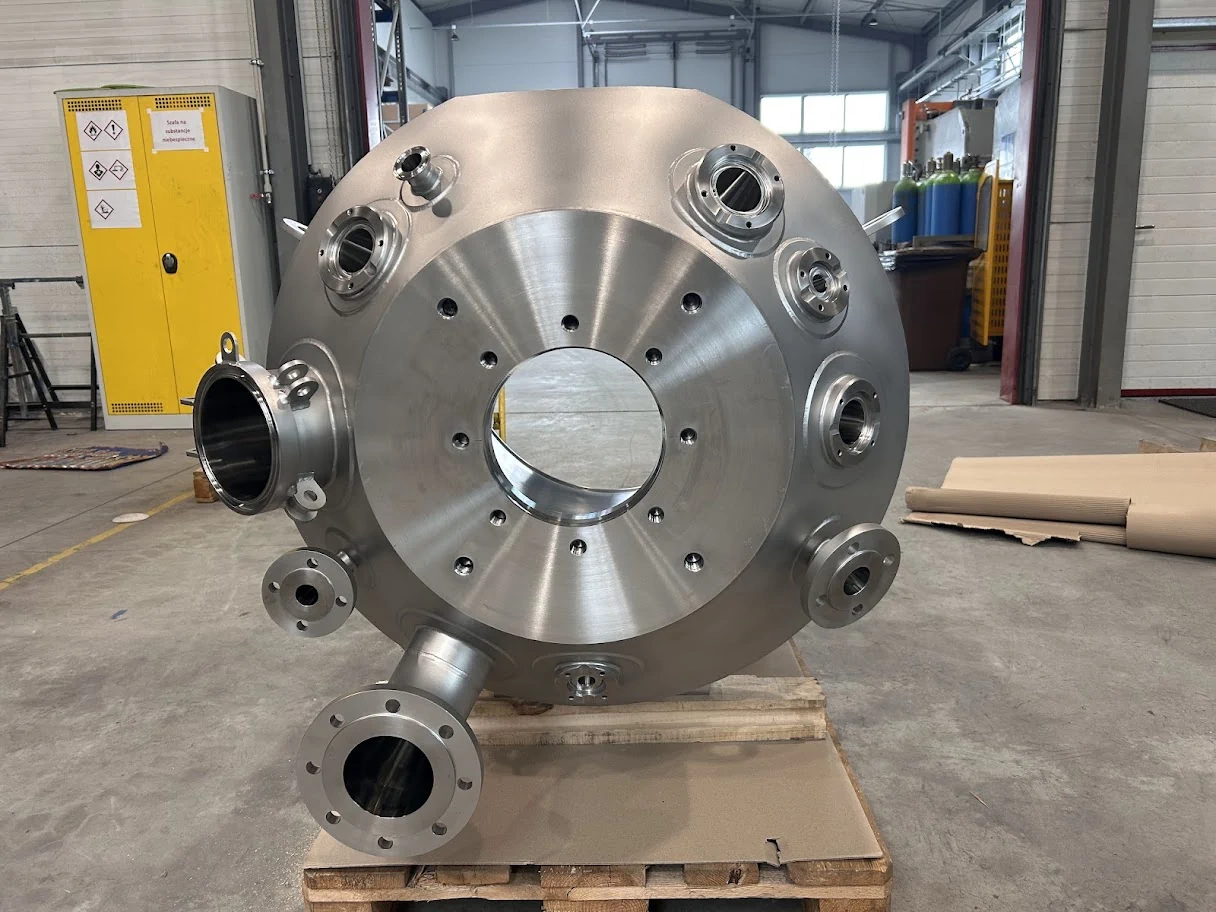

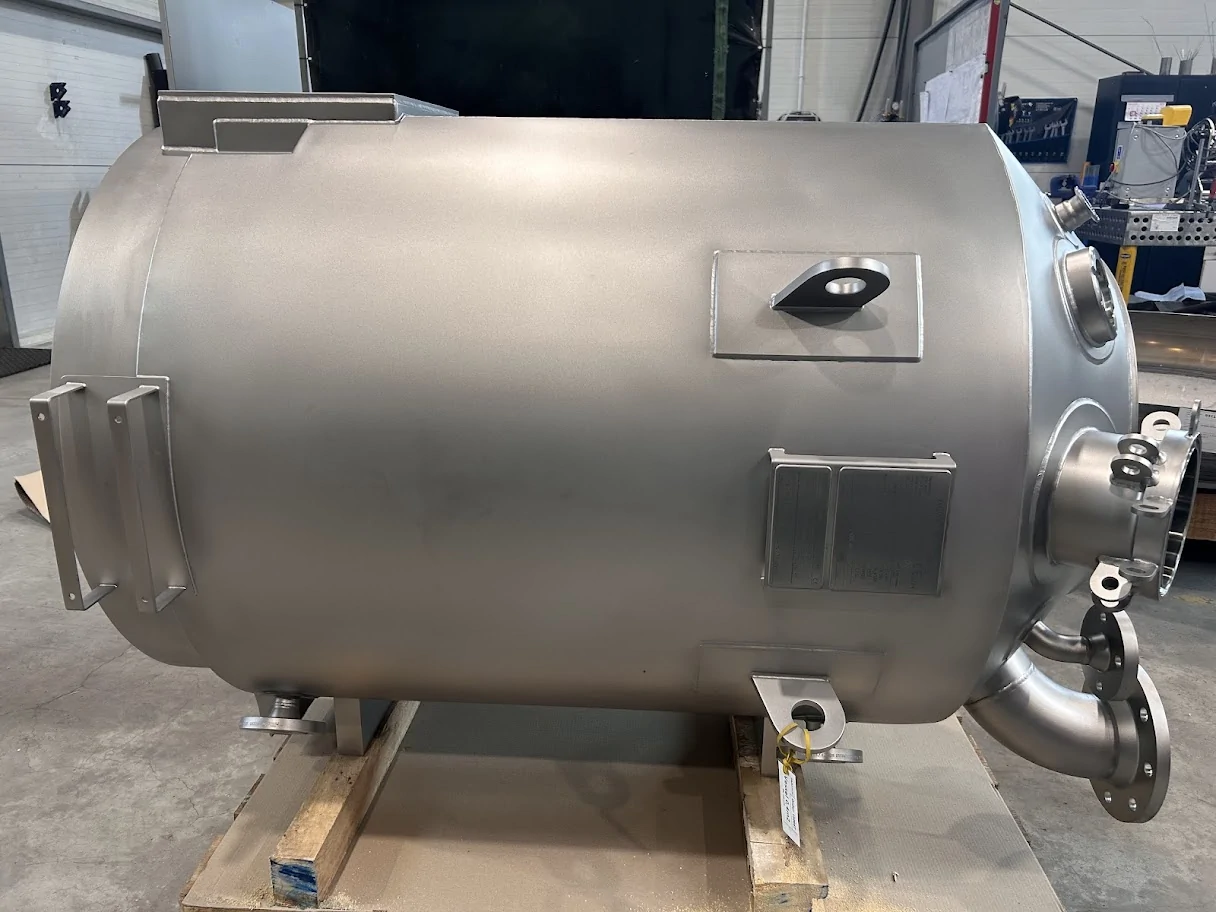

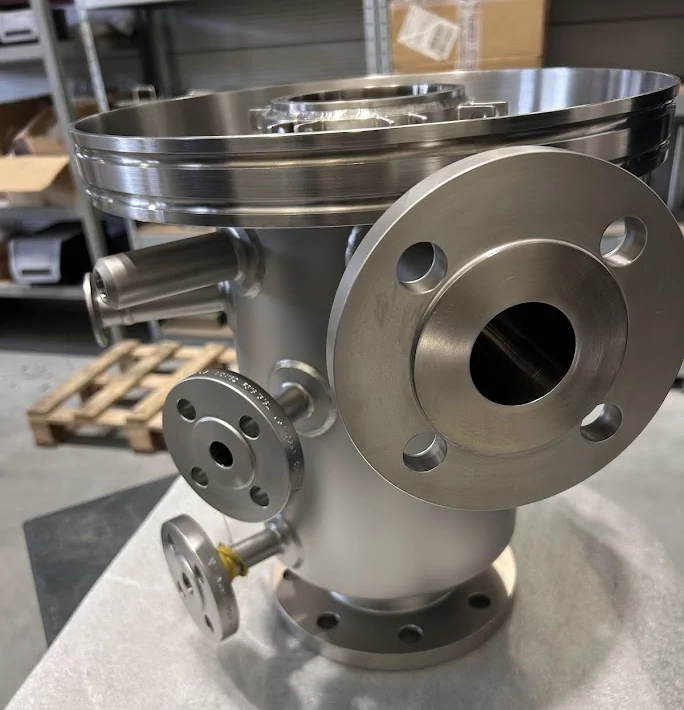

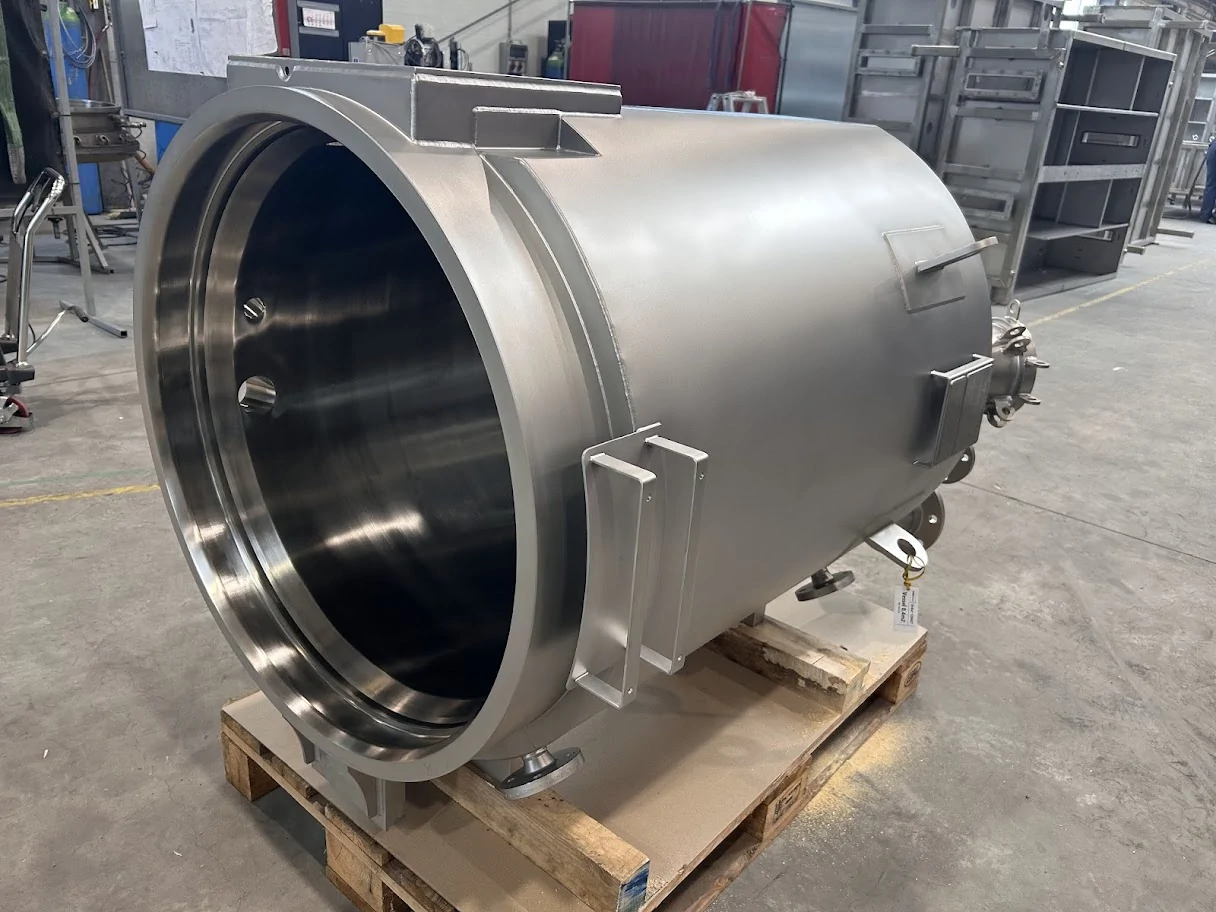

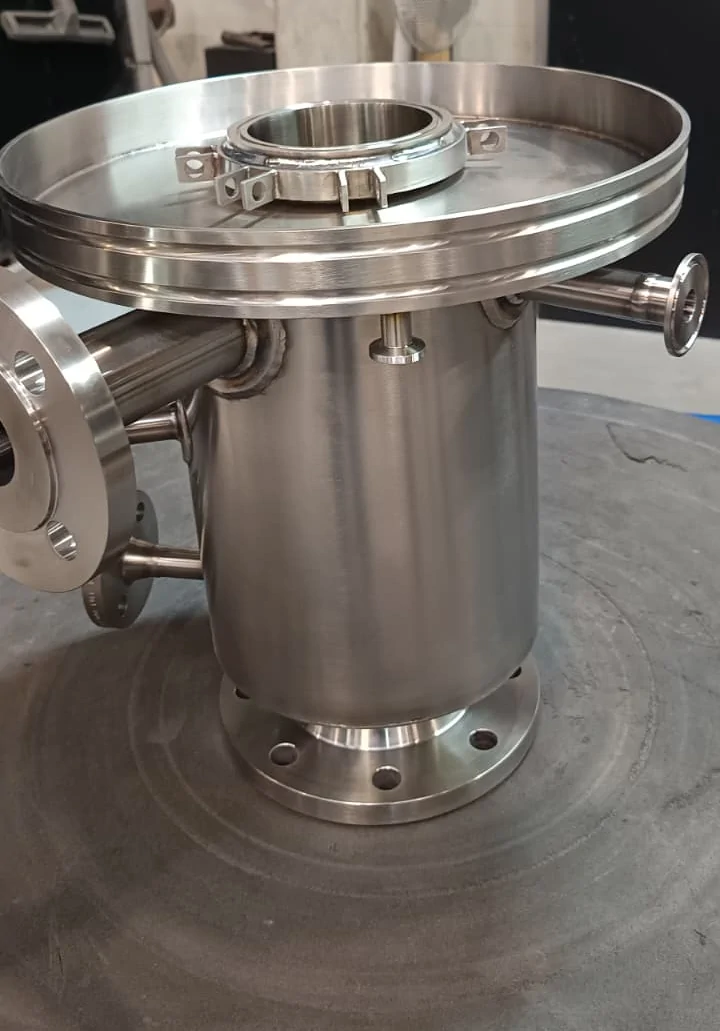

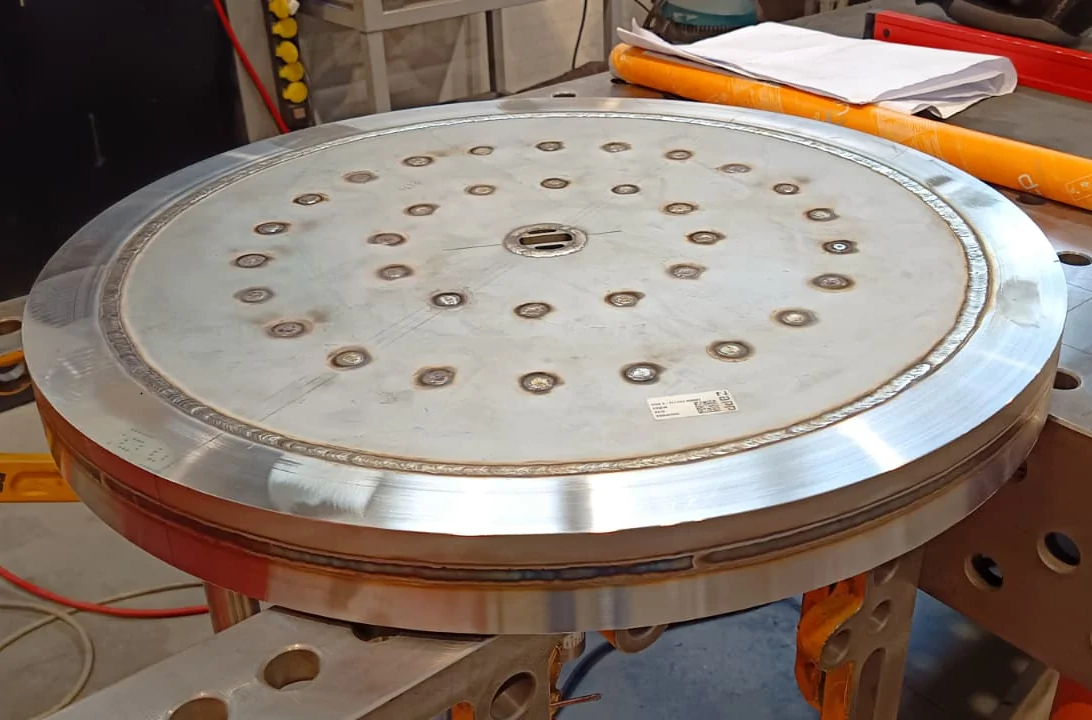

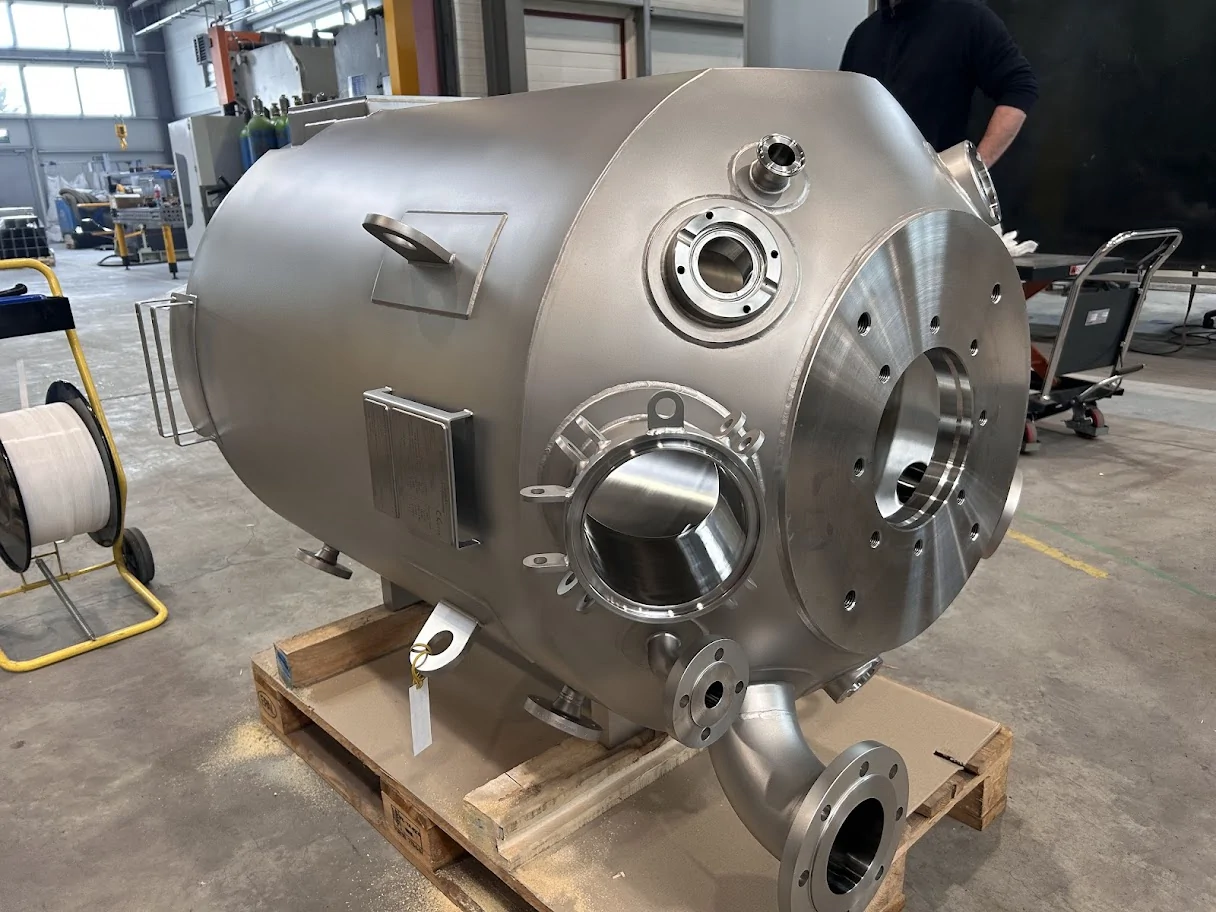

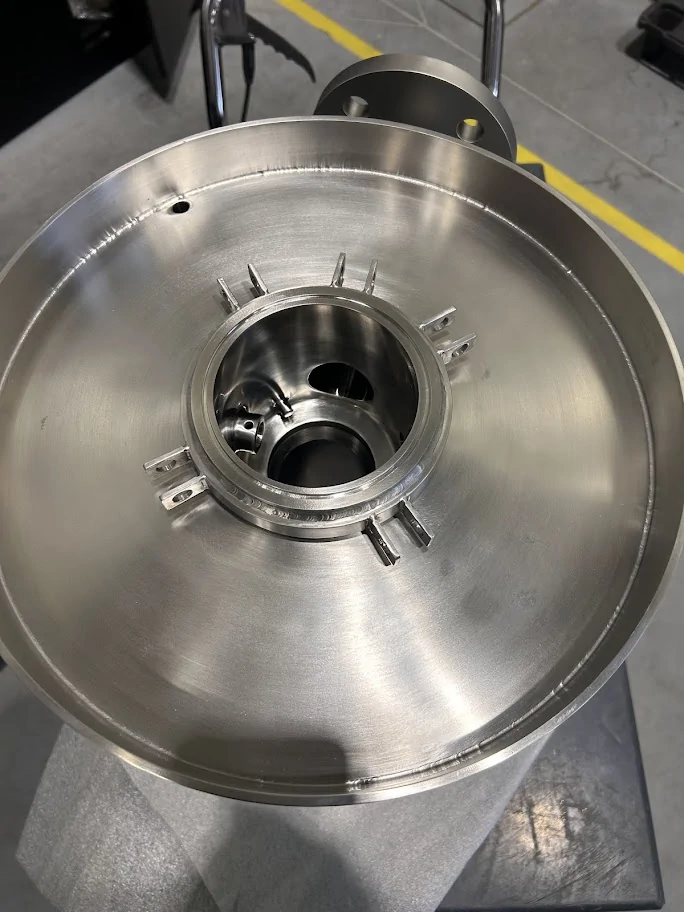

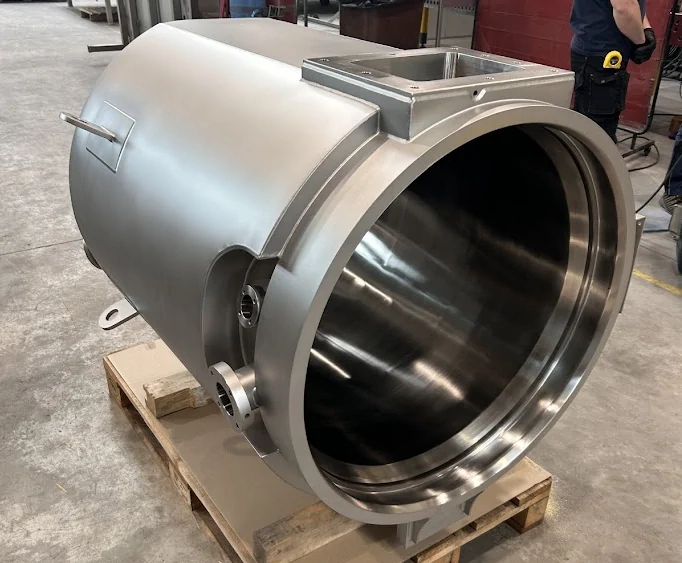

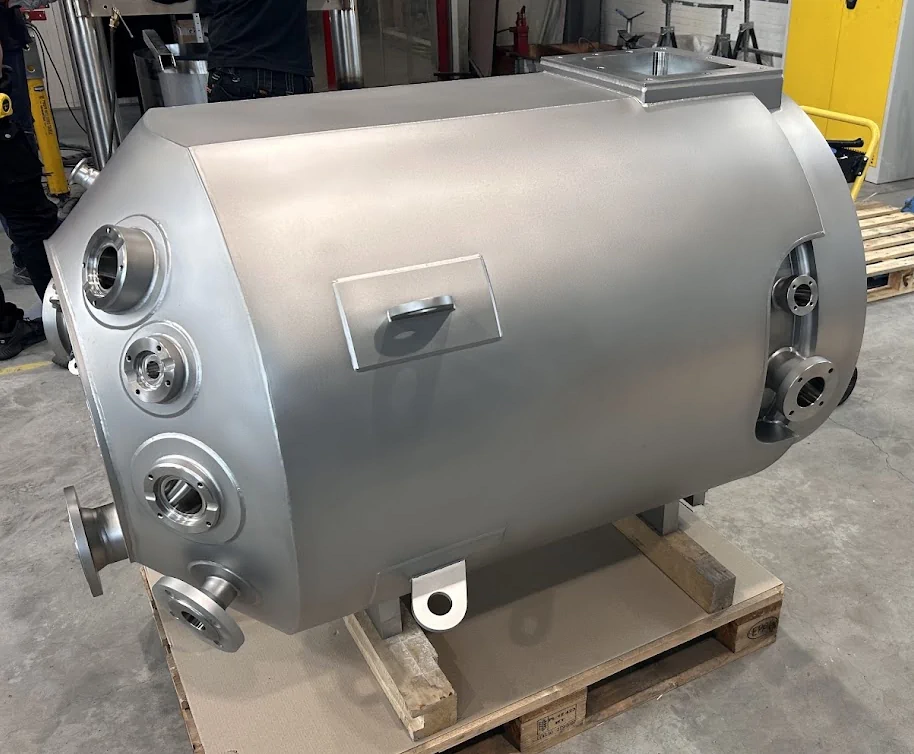

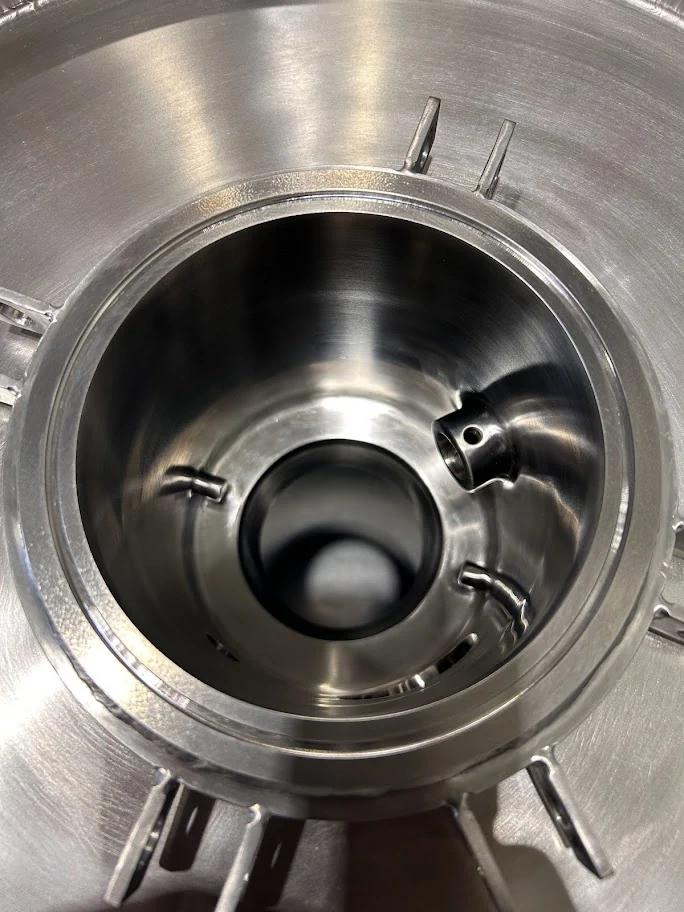

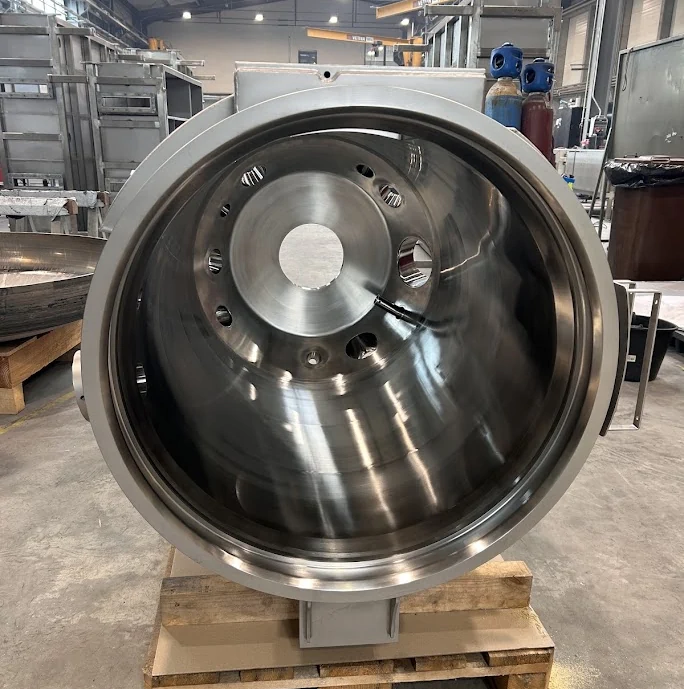

Implementation gallery
